Concrete Pump Rental

To determine the appropriate concrete pump for your project, the below points must be considered:

  • Type of concrete mix

  • Volume of concrete required to be pumped

  • Layout of construction site

  • Horizontal and vertical distances

Please contact our staff at 2679 8494 or engaeng@netvigator.com for further details or enquiries.


  • Convenient to operate

  • Easy to transport site to site, improving production efficiency and reducing labour costs

  • Shortens construction period and improves construction speed

  • Can be used for the transportation and pouring of fine stone concrete in super high-rise buildings.

Concrete Output in m3/h
Type Model Maker Standard Pressure High Pressure Approx. Weight in kg Approx. Weight in mm Approx. Width in mm Approx. Height in mm Approx. Width with Outrigger Extended (Front) Approx. Width with Outrigger Extended (Rear)
56m Boom 56X-6RZ Zoomlion 190 140 43000 13885 2480 3980 9300 12600
49m Boom ZLJ5330THBSE 49X-6RZ Zoomlion 180 - 33000 12235 2530 4000 9310 10500
42m Boom BPL 1200 HDR Schwing 150 - 36000 12935 2480 3930 8500 8400
38m Boom ZLJ5296THB 38X-5RZ Zoomlion 140 90 27985 12010 2500 3900 6190 8345
37m Boom ZLJ5261THB 37X-4Z Zoomlion 120 70 36000 11910 2500 3900 6200 7230
36m Boom 36X-5Z Zoomlion 160 100 25880 10575 2500 3900 6030 5950
30-32m Boom PY21-60 Kyokuto 100 70 19965 11000 2490 3700 6150 2150
25m Boom PY110-25 Kyokuto 110 75 15600 9500 2490 3550 5270 2200
24m Boom 24X-4Z Zoomlion 100 60 13880 8700 2300 3350 4880 3450
21m Boom PY21-51 Kyokuto 100 70 14500 9480 2485 3150 4600 2150
21m Boom DC-A1000BR Mitsubishi 100 60 15000 9090 2460 3435 4740 2460
21m Boom DC-A1000BD Mitsubishi 100 60 15000 9090 2460 3435 4740 2460

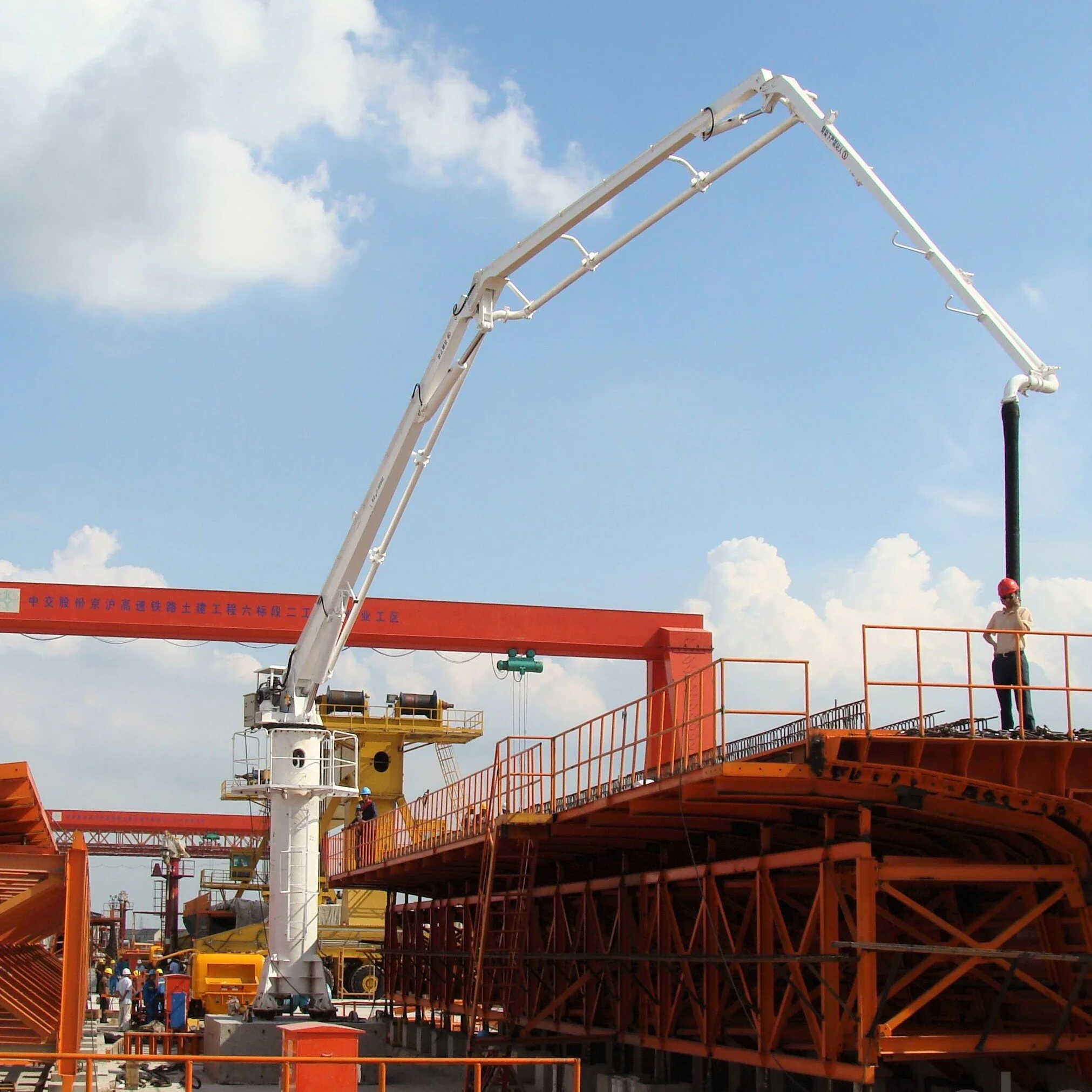

  • Some structures such as columns, internal bridges or coverings do not allow using stationary pumps at all or make the application of such machinery very complicated. Concrete placing booms are ideal variant to choose if you are working on the large area (up to 450 square meters).

  • Ideal for working on high-rise buildings, treatment plants, bridges, dams, and other infrastructure.

Concrete Output in m3/h
Type Model Maker Standard Pressure High Pressure Approx. Weight in kg Approx. Weight in mm Approx. Width in mm Approx. Height in mm Approx. Width with Outrigger Extended (Front) Approx. Width with Outrigger Extended (Rear)
56m Boom 56X-6RZ Zoomlion 190 140 43000 13885 2480 3980 9300 12600
49m Boom ZLJ5330THBSE 49X-6RZ Zoomlion 180 - 33000 12235 2530 4000 9310 10500
42m Boom BPL 1200 HDR Schwing 150 - 36000 12935 2480 3930 8500 8400
38m Boom ZLJ5296THB 38X-5RZ Zoomlion 140 90 27985 12010 2500 3900 6190 8345
37m Boom ZLJ5261THB 37X-4Z Zoomlion 120 70 36000 11910 2500 3900 6200 7230
36m Boom 36X-5Z Zoomlion 160 100 25880 10575 2500 3900 6030 5950
30-32m Boom PY21-60 Kyokuto 100 70 19965 11000 2490 3700 6150 2150
25m Boom PY110-25 Kyokuto 110 75 15600 9500 2490 3550 5270 2200
24m Boom 24X-4Z Zoomlion 100 60 13880 8700 2300 3350 4880 3450
21m Boom PY21-51 Kyokuto 100 70 14500 9480 2485 3150 4600 2150
21m Boom DC-A1000BR Mitsubishi 100 60 15000 9090 2460 3435 4740 2460
21m Boom DC-A1000BD Mitsubishi 100 60 15000 9090 2460 3435 4740 2460

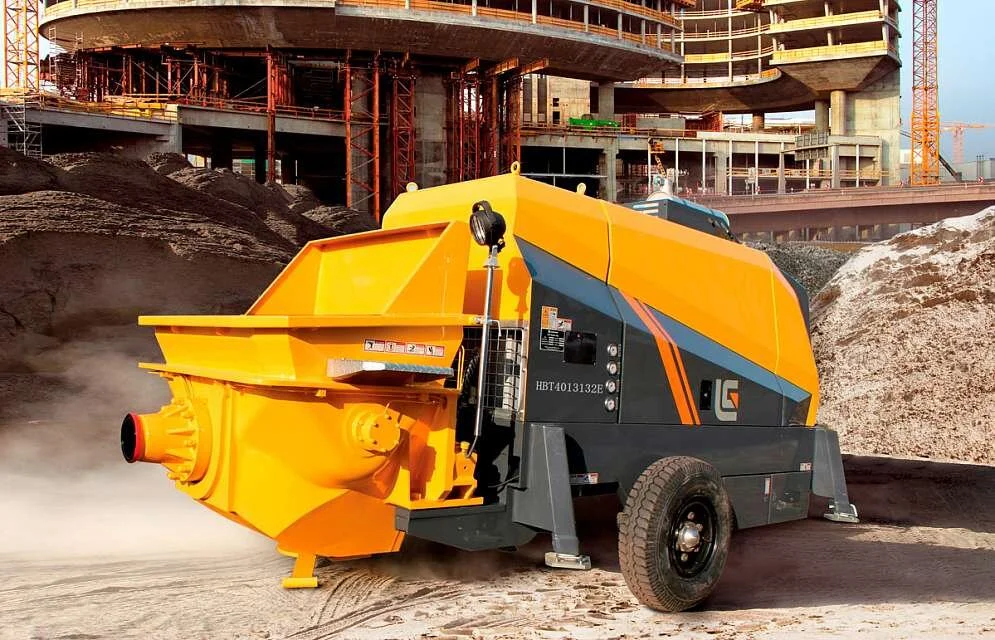

  • For stationary pumps, the pipeline can extend to hundreds of metres away, making it ideal for tunnelling work or high rise constructions.

Concrete Output in m3/h
Type Model Maker Standard Pressure High Pressure Approx. Weight in kg Approx. Weight in mm Approx. Width in mm Approx. Height in mm Approx. Width with Outrigger Extended (Front) Approx. Width with Outrigger Extended (Rear)
56m Boom 56X-6RZ Zoomlion 190 140 43000 13885 2480 3980 9300 12600
49m Boom ZLJ5330THBSE 49X-6RZ Zoomlion 180 - 33000 12235 2530 4000 9310 10500
42m Boom BPL 1200 HDR Schwing 150 - 36000 12935 2480 3930 8500 8400
38m Boom ZLJ5296THB 38X-5RZ Zoomlion 140 90 27985 12010 2500 3900 6190 8345
37m Boom ZLJ5261THB 37X-4Z Zoomlion 120 70 36000 11910 2500 3900 6200 7230
36m Boom 36X-5Z Zoomlion 160 100 25880 10575 2500 3900 6030 5950
30-32m Boom PY21-60 Kyokuto 100 70 19965 11000 2490 3700 6150 2150
25m Boom PY110-25 Kyokuto 110 75 15600 9500 2490 3550 5270 2200
24m Boom 24X-4Z Zoomlion 100 60 13880 8700 2300 3350 4880 3450
21m Boom PY21-51 Kyokuto 100 70 14500 9480 2485 3150 4600 2150
21m Boom DC-A1000BR Mitsubishi 100 60 15000 9090 2460 3435 4740 2460
21m Boom DC-A1000BD Mitsubishi 100 60 15000 9090 2460 3435 4740 2460
